What are the key properties of Incoloy 800/800HT Fasteners?

They offer excellent resistance to oxidation, carburization, and high-temperature corrosion, along with high creep rupture strength and resistance to stress corrosion cracking.

What types of Incoloy 800/800HT Fasteners are available?

Common types include bolts, nuts, screws, washers, studs, threaded rods, and custom fasteners available in multiple sizes and standards such as ASTM, DIN, and ISO.

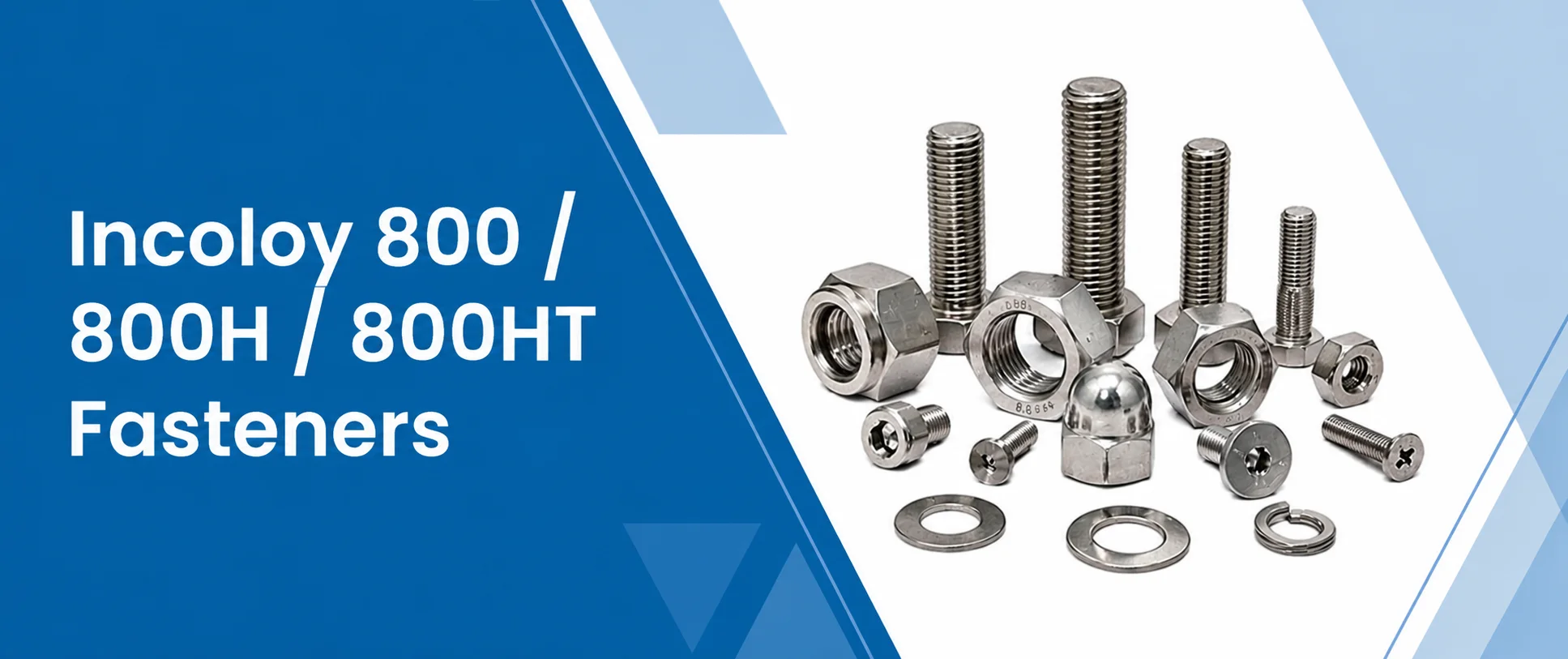

Incoloy 800, 800HT Fasteners

Q: What is the difference between Incoloy 800, 800H, and 800HT?

Incoloy 800 is the base grade, 800H has higher carbon content for improved creep resistance, and 800HT includes controlled aluminum and titanium additions for enhanced high-temperature strength.

Q: Where are Incoloy 800/800HT Fasteners used?

They are used in petrochemical processing, heat treatment equipment, power plants, nuclear industries, and chemical processing systems, especially in heat exchangers and high-temperature piping.

Incoloy 800 Fasteners Manufacturer, Incoloy 800HT Hex Nuts, UNS N08800 Fasteners, DIN 1.4876 Fasteners, Incoloy® Alloy 800H Hexagon Nuts, Incoloy® 800HT Fastener Supplier in India.

Incoloy 800HT Heavy Hex Head Bolts, Incoloy 800 Nuts, Incoloy 800HT Bolts, Incoloy Alloy 800 Washers, Incoloy 1.4959 Fasteners, Alloy UNS N08811 Fasteners, Incoloy 800HT Screws, Incoloy 800 Stud Bolts Manufacturer in Mumbai, India.

Unifit Fastener is one of the noticeable suppliers and exporters of Incoloy Alloy 800 / 800HT Fasteners, which is readily brake or roll formed, welded, soldered and cut by both thermal and mechanical methods. The austenitic structure in Incoloy 800 Fasteners allows excellent toughness, even down to cryogenic temperatures. The role of the titanium alloy addition in Incoloy 800H Fasteners is discussed and is compared with the alternative low carbon types. The low carbon chemistry of Incoloy 800HT Fasteners combined with an addition of nitrogen enables to meet the excellent mechanical properties. Incoloy UNS N08800 Fasteners offers good corrosion resistance to most chemicals, salts, and acids and molybdenum content that helps resistance to marine environments.

Molybdenum addition in Incoloy UNS N08810 Fasteners improves the corrosion resistance of austenitic steels and imparts hot strength characteristics. Typical uses of Incoloy UNS N08811 Fasteners include exhaust manifolds, furnace parts, heat exchangers, jet engine parts, pharmaceutical and photographic equipment, etc. Nickel-Alloy 800 Fasteners is also used in warehousing and overland transportation of chemicals, food and beverages, pharmacy, synthetic fibre, paper and textile plants and pressure vessels.

Table of Content

Equivalent Grade of Incoloy 800/800HT Fasteners
Incoloy 800/800HT Fasteners Specification
Types Of Incoloy 800/800HT Fasteners

Incoloy 800/800HT Bolts
Incoloy 800/800HT Nuts
Incoloy 800/800HT Washers
Incoloy 800/800HT Screws
Incoloy 800/800HT Stud Bolt

Chemical Composition of Incoloy 800/800HT Fasteners
Mechanical Properties of Incoloy 800/800HT Fasteners
Export Destinations For Incoloy 800/800HT Fasteners

Nickel-Alloy 800H Fasteners are molybdenum-bearing austenitic alloys which are more resistant to general corrosion and pitting crevice corrosion than the conventional chromium nickel austenitic steel. The high carbon version of Nickel-Alloy 800HT Fasteners shows improved corrosion resistance due to a minimized carbide precipitation during welding.

Incoloy 800/800HT Fasteners Equivalent Grade

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy 800	N08800	1.4876	Z8NC32-21	X10NiCrAlTi32-20	NCF 800	NA 15	ЭИ670	XH32T
Incoloy 800HT	N08811	1.4959	-	X8NiCrAlTi32-21	NCF 800HT	NA 15(HT)	ЭИ670	XH32T

Incoloy 800 / 800HT Fasteners Specification

Specifications : ASTM A479, A276, B564, B408 / ASME SA276, SA479, SB564, SB408
Standard: : DIN, ISO, JIS, GB, IS, BS, ASTM
Length : 3mm to 200mm
Size : M02 to M160, Custom Sizes

Types of Incoloy 800HT Fasteners

Incoloy Alloy 800, 800HT Bolts

Incoloy 800 Structural Bolts
Incoloy 800 Heavy Hex Bolts
Incoloy 800 Hex Bolts
Incoloy 800 Hexagon Head Bolts
Incoloy 800 Machine Bolts
Incoloy 800 T Bolts
Incoloy® 800 Eye Bolt
Incoloy 800 Foundation Bolts
Incoloy® Alloy 800 J Bolts
Incoloy 800 Button Head Bolt

Incoloy 800 Anchor Bolts
Incoloy 800 Long Bolts
Incoloy 800 Carriage Bolt
Incoloy 800 Elevator Bolt
Incoloy 800 Timber Bolts
Incoloy 800 Square Bolt
Incoloy 800 Metric Bolt
Incoloy 800 Plow Bolts
Incoloy 800 U Bolts
Incoloy 800 Flange Bolts

Incoloy Alloy 800, 800HT Nuts

Incoloy 800 Hex Nuts
Incoloy 800 Heavy Hex Nuts
Incoloy 800 Wing Nuts
Incoloy 800 Hexagon Nuts
Incoloy 800/800HT Cap Nuts
Incoloy 800 Square Nuts
Incoloy 800 Coupling Nuts
Incoloy 800HT Hex Jam Nuts
Incoloy Alloy 800 T-Nuts

Incoloy® Alloy 800 Eye Nuts
Incoloy 800 Nylock Nuts
Incoloy® 800 High Tensile Nuts
Incoloy 800/800HT Cage Nuts
Incoloy 800 Dome Nuts
Incoloy 800 Knurled Nuts
Incoloy 800 Keps-K Lock Nuts
Incoloy 800 Machine Hex Nuts
Incoloy 800HT Slotted Nuts

Incoloy Alloy 800, 800HT Washers

Incoloy 800HT Plain Washers
Incoloy 800 Spring Washers
Incoloy 800 Locking Washer
Incoloy 800HT Split Washer
Incoloy® Alloy 800 Flat Washers
Incoloy 800/HT Ogee Washers
Incoloy 800 Fender Washer
Incoloy 800 Conical Washers
Incoloy 800 Serrated Washer

Incoloy 800 Tab Washers
Incoloy 800, 800HT Hex Washer
Incoloy 800HT Countersunk Washer
Incoloy Alloy 800 Dock Washers
Incoloy 800 Spring Lock Washer
Incoloy 800/800HT Star Washer
Incoloy 800 Bonded sealing Washer
Incoloy 800 Square Washers
Incoloy® 800 Belleville Washer

Incoloy Alloy 800, 800HT Screw

Incoloy® 800HT Socket Set Screw
Incoloy 800 Self Drilling Screw
Incoloy 800 Socket Head Cap Screw
Incoloy 800 Hex Head Screws
Incoloy 800/HT Wood Screw
Incoloy 800 / 800HT Eye Screw
Incoloy 800/800HT Wing Screw
Alloy 800 Self Tapping Screws
Incoloy 800 Roofing Screw

Incoloy 800 Phillips Head Screw
Incoloy 800 Decking Screw
Incoloy 800 Machine Screw
Incoloy 800HT Thumb Screw
Incoloy 800 Drywall Screws
Incoloy 800 Chipboard Screw
Incoloy 800 Metric Set Screws
Incoloy 800HT Sems Screw
Alloy 800 Thread Rolling Screw

Incoloy Alloy 800, 800HT Stud Bolt

Incoloy 800 Full Threaded Stud Bolts
Incoloy 800 Half Threaded Stud Bolts
Incoloy 800, 800HT Threaded Rod
Incoloy 800 Double Ended Studs
Incoloy 800 Tap End Stud Bolt
Incoloy® Alloy 800HT Tie Rods

Incoloy Alloy 800/800HT Studs
Incoloy 800 Single End Stud Bolts
Incoloy 800 Reduced Shank Stud Bolt
Alloy 800 Continuous Threaded Stud
Incoloy 800 Partial Threads Stud Bolt
Incoloy® 800HT Heavy Stud Bolts

Incoloy 800 / 800HT Fasteners Chemical Composition

Grade	Ni	Fe	Cr	Cu	Ti	Al	C	Mn	S	Si
Incoloy 800	30.0-35.0	39.5 min	19.0-23.0	.75 max	.15-.60	.15-.60	.1 max	1.5 max	.015 max	1.0 max
Incoloy 800HT	30.0-35.0	39.5 min	19.0-23.0	.75 max	.25-.60	.85-1.20	.06-.10 max	1.5 max	.015 max	1.0 max

Incoloy 800 / 800HT Fasteners Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.47 g/cm3	1413 °C (2580 °F)	655 MPa, 95000 psi	310 MPa, 45000 psi	45 %

Incoloy 800 / 800HT Fasteners Price List:

We offer wide range of industrial Incoloy® 800, 800HT Fasteners that in compliance with IS, BS and DIN standards at best market prices in India. To know more about the latest price of Incoloy 800 / 800HT Fasteners Please Call 91 22 66518521 or Send an Email to chirag@unifitmetalloys.com

Incoloy 800 / 800HT Fasteners Application Area:

Our products range of Incoloy 800 Fasteners find application in various areas such as: Civil Construction Industries, Ship Building Industries, Heavy Engineering Industries, Fertilizer Plants, power Generation Units ( Nuclear, Hydro or Thermal), Petro-Chemical Industries, Civil Industries, Oil Expansion Projects, Off Shore & On Shore Oil Towers, Home Fittings, Valves, Vessels, Pumps, Railways, Steel Plants etc.

Unifit Fastener manufactures, suppliers and exports of Incoloy 800 / 800HT Fasteners to various countries such as Thailand, Kazakhstan, Belgium, Hong Kong, Mexico, Mexico, Turkey, Ecuador, Egypt, Kenya, Romania, Poland, Bulgaria, Sri Lanka, Estonia, Australia, Iran, Chile, Lithuania, Belarus, Argentina, Pakistan, Iraq, Greece, Czech Republic, China, Saudi Arabia, Algeria, Chile, Malaysia, Lebanon, Japan, Netherlands, Portugal, Ukraine, Italy, Ghana, Taiwan, Austria, Trinidad & Tobago, France, Nigeria, Hungary, South Korea, Tunisia, Colombia, Oman, Bangladesh, Libya, Costa Rica, Russia, Spain, Morocco, Bahrain, Iran, Slovakia, Norway, Yemen, South Africa, Vietnam, Angola, Nigeria, United Kingdom, Denmark, Indonesia, Mongolia, Azerbaijan, Venezuela, Croatia, Gabon, United States, Finland, Israel, Philippines, Qatar, United Arab Emirates, Peru, Canada, Bhutan, Afghanistan, Sweden, New Zealand, Brazil, Poland, Serbia, Bolivia, Singapore, Jordan, Switzerland, Kuwait.

FAQs – Incoloy 800 / 800H / 800HT Fasteners

Incoloy 800, 800H, and 800HT fasteners are high-performance fastening components made from nickel-iron-chromium alloys (UNS N08800, N08810, N08811). These alloys are designed to provide excellent strength and stability in high-temperature and corrosive environments.

The main difference lies in carbon and alloying elements. Incoloy 800 is the base grade, while 800H has higher carbon content for improved creep resistance, and 800HT includes controlled aluminum and titanium for enhanced high-temperature strength and stability.

These fasteners offer excellent resistance to oxidation, carburization, and high-temperature corrosion. They maintain structural stability at elevated temperatures and provide high creep rupture strength along with resistance to stress corrosion cracking.

They are widely used in petrochemical processing, heat treatment equipment, power plants, nuclear industries, and chemical processing systems. Common applications include heat exchangers, furnace components, and high-temperature piping systems.

Incoloy 800/800HT fasteners are available in various forms such as bolts, nuts, screws, washers, studs, threaded rods, and custom fasteners. They are manufactured in different sizes and standards including ASTM, DIN, and ISO.
