Incoloy 800 / 800H / 800HT Round Bar
ASTM B408 | UNS N08800 / N08810 / N08811 | DIN 1.4876 / 1.4958 / 1.4859
The Incoloy 800, 800H, and 800HT are high-grade nickel-iron-chromium alloys developed for exceptional high-temperature and corrosion-resistance properties. Unifit Fastener manufactures and exports Incoloy 800/800H/800HT round bars to clients across India and 50+ countries, which are manufactured and supplied in all three grades ranging from 3 mm to 800 mm in diameter, as per ASTM B408 standards. Our round bars are manufactured to the highest international standards such as ASME SB408, DIN 1.4876/1.4958/1.4859, EN, JIS, GOST, and AFNOR. Unifit Fastener sources certified precision ground bars for your use in heat exchangers, petrochemical reformers, superheater tubes, and aerospace applications with full mill test reports and third-party inspection. Our ISO 9001:2015-certified facility, coupled with our own metallurgical expertise in spectroanalysis and mechanical testing, means that each bar is delivered to exact specifications, providing metallurgical confidence for engineers, procurement managers, and project teams. Contact us for a competitive quote on Incoloy 800 round bar — response within 24 hours.
What Are Incoloy 800, 800H & 800HT Alloys?
Incoloy 800 (UNS N08800) is a solid solution nickel-iron-chromium alloy that is highly resistant to oxidation, carburization and sulfidation at high temperatures. The 800H (UNS N08810) variant has a controlled higher carbon content (0.05-0.10%) and an annealed grain size for superior creep and stress rupture properties above 600°C, while Incoloy 800HT (UNS N08811) further controls the amount of aluminium (0.15-0.60%) and titanium (0.15-0.60%) additions to maximize long-term structural stability in continuous high-temperature service up to 1100°C.
Table of Content
- Incoloy 800/800H/800HT Round Bar Specifications
- Chemical Composition
- Mechanical & Physical Properties
- Standard Round Bar Sizes & Weight Chart
- Available Forms / Product Types
- International Equivalent Grades
- Applications & Industries Served
- Key Features & Advantages
- Incoloy 800 vs 800H vs 800HT
- Manufacturing Process & Quality Assurance
- Certifications & Standards Compliance
- Indicative Price Range
- Our Related Products
- Frequently Asked Questions
- Request a Quote
Incoloy 800/800H/800HT Round Bar Specifications
| Parameter | Details |
| Standard | ASTM B408 / ASME SB408 |
| Applicable Specifications | EN, DIN, JIS, ASTM, BS, ASME, AISI, IS |
| Grades | Incoloy 800, 800H, 800HT / UNS N08800, N08810, N08811 |
| Round Bar Diameter | 3 mm to 800 mm (custom OD available on request) |
| Bright Bar OD | 4 mm to 500 mm |
| Hex Bar A/F Size | 2 mm to 100 mm (metric); 11/16" to 2-3/4" (imperial) |
| Square Bar Size | 18 mm to 47 mm (11/16" to 1-3/4") |
| Flat Bar Thickness | 1/2" to 10" (2 mm to 150 mm) |
| Length | 1 to 6 meters; custom cut lengths available |
| Finish | Black, Bright, Peeled & Polished, Solution Annealed, Rough Turned, Grinding, Centreless Ground, Hairline |
| Condition | Cold Drawn, Hot Rolled, Solution Annealed, Peeled, Forged |
| Tolerance | H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or as per client requirement |
| Technique | Hot Rolled, Cold Rolled, Cold Drawn, Forged |
| Export Markets | USA, UAE, UK, Europe, Australia, Singapore, Malaysia, Africa, and 50+ countries |
Chemical Composition - Incoloy 800 / 800H / 800HT
| Grade | Ni (%) | Cr (%) | Fe (%) | Mn (max) | Si (max) | C (%) | S (max) | Cu (max) | Al (%) | Ti (%) |
| 800 | 30.00-35.00 | 19.00-23.00 | 39.50 min | 1.50 | 1.00 | 0.10 max | 0.015 | 0.75 | 0.15-0.60 | 0.15-0.60 |
| 800H | 30.00-35.00 | 19.00-23.00 | 39.50 min | 1.50 | 1.00 | 0.05-0.10 | 0.015 | 0.75 | 0.15-0.60 | 0.15-0.60 |
| 800HT | 30.00-35.00 | 19.00-23.00 | 39.50 min | 1.50 | 1.00 | 0.06-0.10 | 0.015 | 0.75 | 0.15-0.60A | 0.15-0.60A |
^A: For 800HT, Al + Ti combined = 0.85–1.20% minimum.
Mechanical & Physical Properties
| Property | Value |
| Density | 7.94 g/cm3 |
| Melting Point | 1385°C (2525°F) |
| Tensile Strength | Psi - 75,000 / MPa - 520 (min) |
| Yield Strength (0.2% Offset) | Psi - 30,000 / MPa - 205 (min) |
| Elongation | 30% minimum |
| Hardness (Brinell) | Approx. 184 HB |
Modulus of Elasticity (at Room Temperature)
| Tensile Modulus (ksi) | Tensile Modulus (GPa) | Shear Modulus (ksi) | Shear Modulus (GPa) | Poisson's Ratio |
| 28.5 | 196.5 | 10.64 | 73.4 | 0.339 |
Standard Round Bar Sizes & Weight Chart
Standard lengths: 2,000 mm to 6,000 mm. Cut-to-size service available (tolerance: +2/-0 mm). Custom lengths and OD on request.
| Diameter (mm) | Weight (kg/m) | Condition |
| 10.0 | 0.62 | Cold drawn, ground, solution annealed |
| 12.0 | 0.89 | Cold drawn, solution annealed |
| 30.0 | 5.57 | Hot rolled, solution annealed, peeled |
| 40.0 | 9.86 | Peeled, solution annealed |
| 45.0 | 12.48 | Forged, peeled, solution annealed |
| 50.4 | 15.73 | Solution annealed, peeled |
| 60.0 | 22.17 | Peeled, solution annealed |
| 65.0 | 26.02 | Solution annealed, peeled |
| 70.0 | 30.21 | Hot rolled, annealed |
| 75.0 | 34.68 | Solution annealed, machined |
| 80.0 | 39.48 | Peeled, solution annealed |
| 90.0 | 49.73 | Hot rolled, solution annealed, peeled |
| 95.0 | 55.10 | Hot rolled, annealed, peeled |
| 100.0 | 61.65 | Peeled, solution annealed |
| 130.0 | 104.30 | Hot rolled, annealed, peeled |
| 150.0 | 138.00 | Peeled, solution annealed |
| 160.0 | 156.20 | Peeled, solution annealed |
| 200.0 | Enquire | As per requirement |
Available Forms / Product Types
Unifit Fastener stocks and supplies Incoloy 800/800H/800HT in all standard and custom bar shapes to serve diverse engineering applications:
| Form | UNS N08800 (800) | UNS N08810 (800H) | UNS N08811 (800HT) |

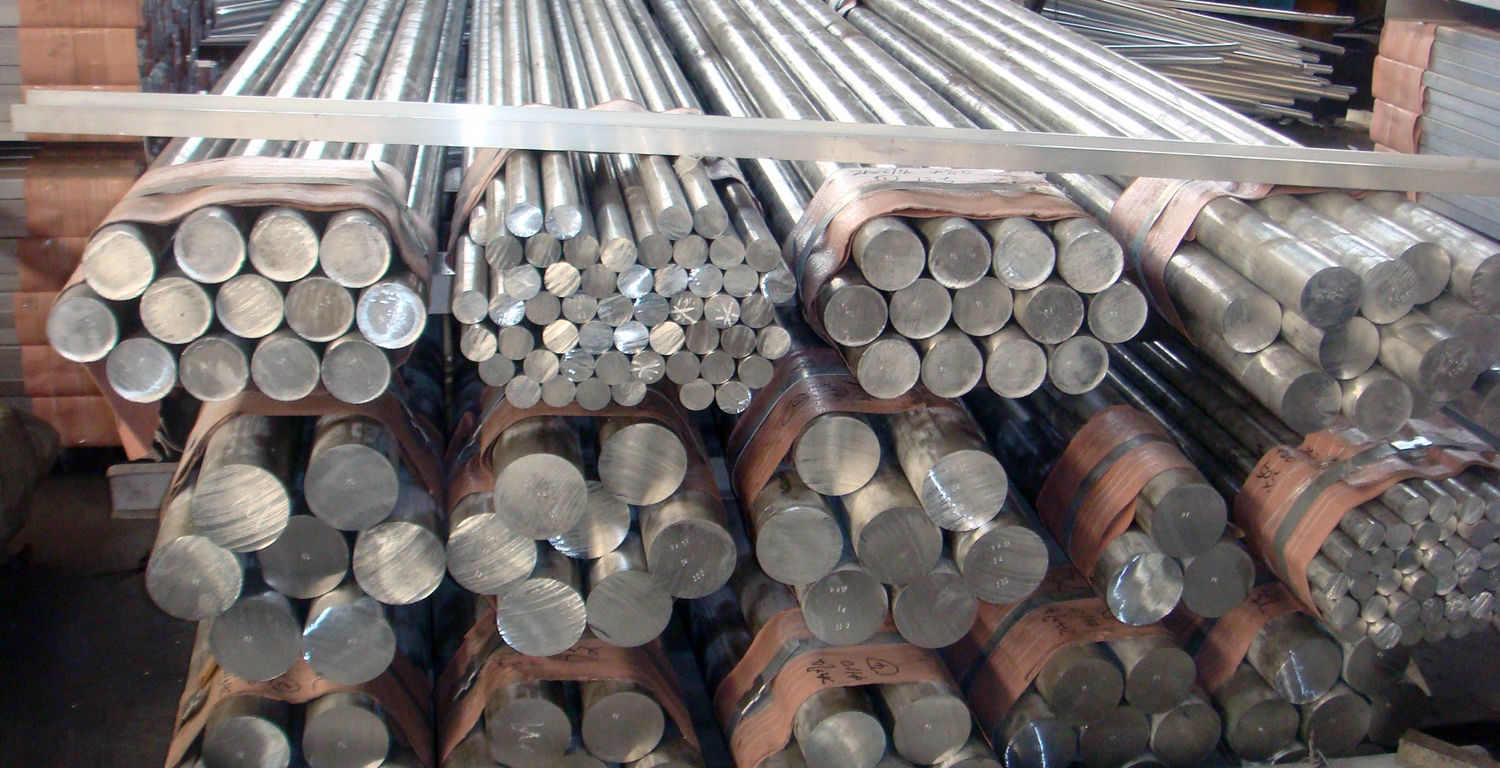

| Round Bar / Rod | Yes | Yes | Yes |

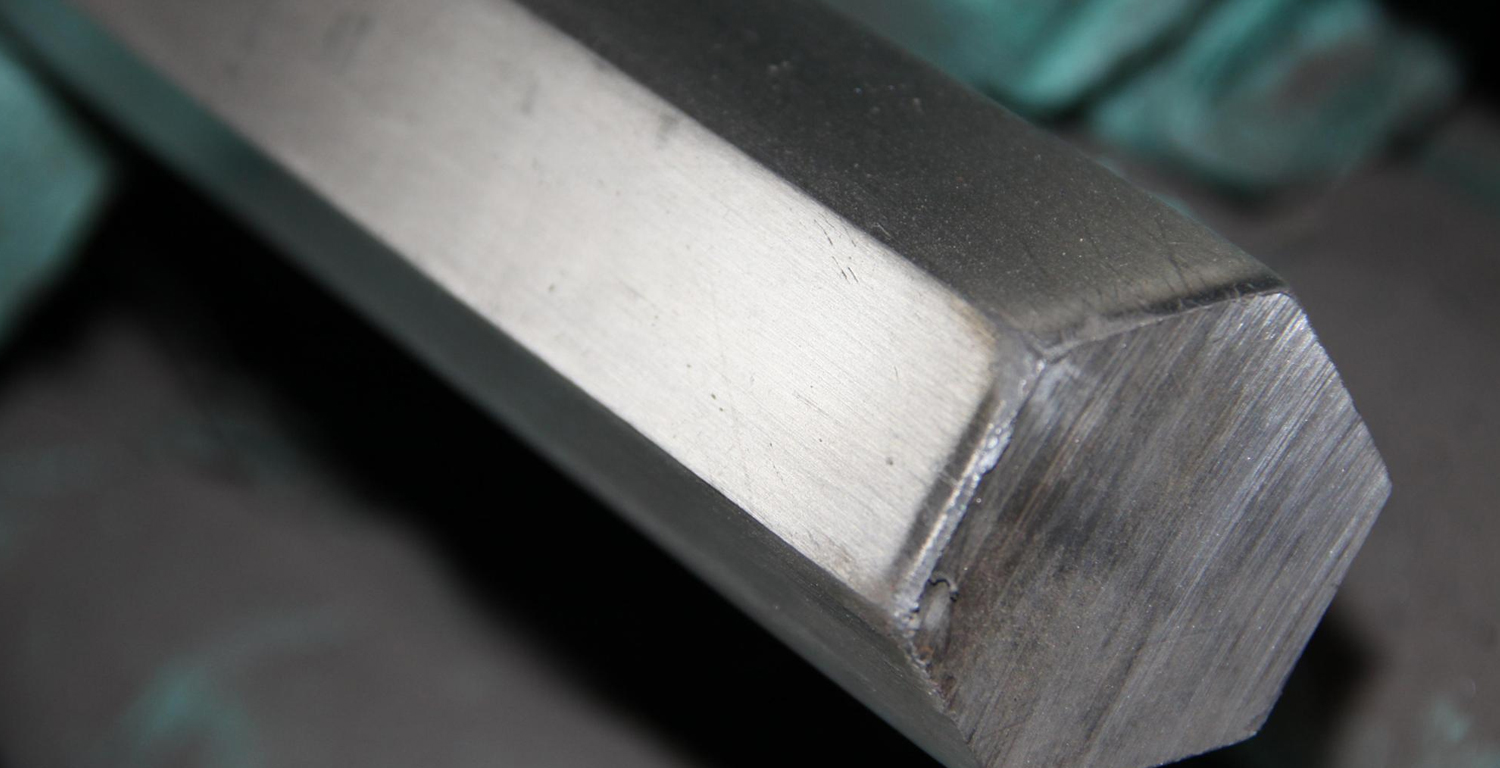

| Hex Bar | Yes | Yes | Yes |

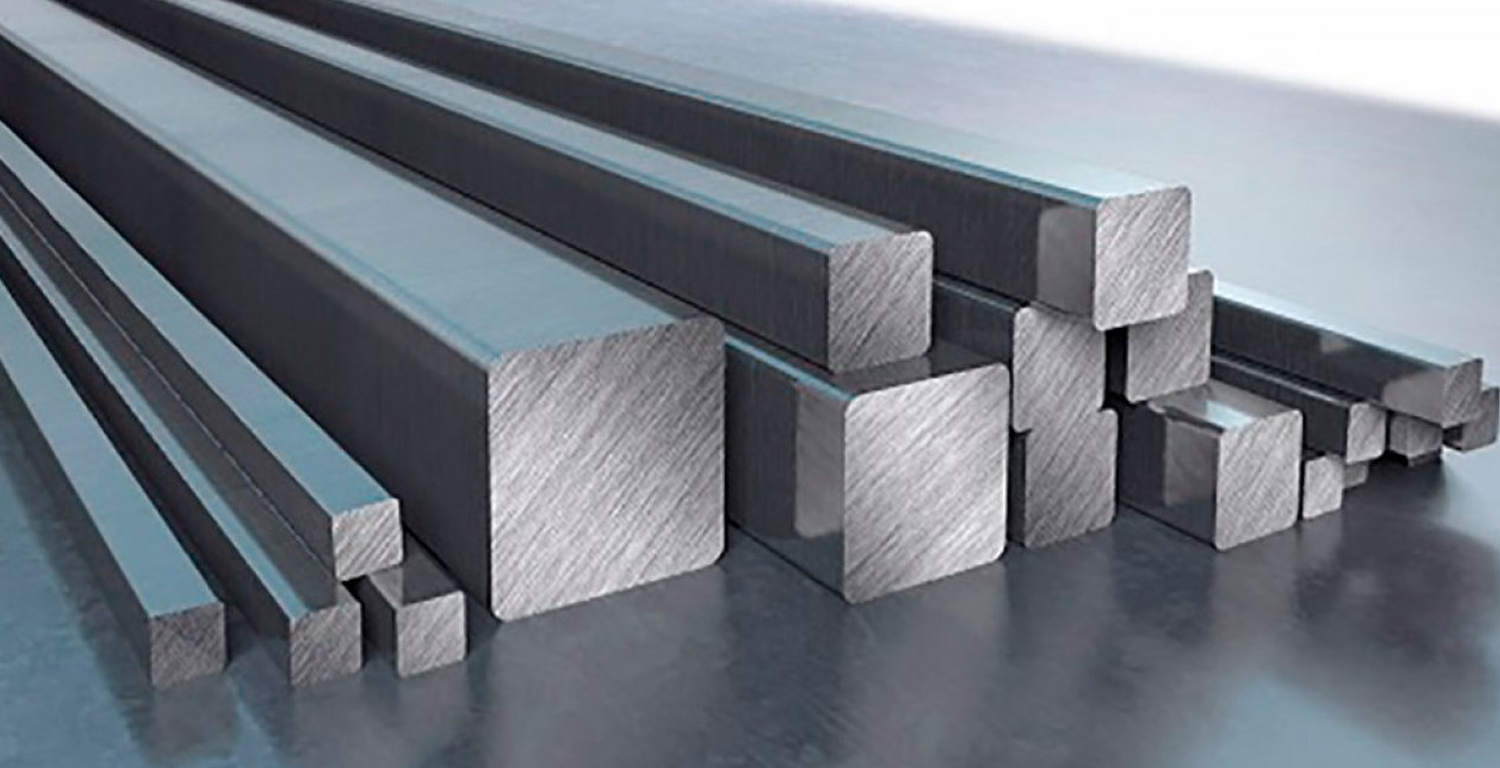

| Square Bar | Yes | Yes | Yes |
| Flat Bar | Yes | Yes | Yes |
| Hollow Bar | Yes | Yes | Yes |
| Bright Bar | Yes | Yes | Yes |
| Threaded Bar | Yes | Yes | Yes |
| Rectangular Bar | Yes | Yes | Yes |
| Precision Ground Bar | Yes | Yes | Yes |
| Forged Bar / Billet | Yes | Yes | Yes |
| Triangle Bar | On Request | On Request | On Request |
| Half Round Bar | On Request | On Request | On Request |
International Equivalent Grades
| Grade | UNS | Werkstoff Nr. | JIS | BS | GOST | AFNOR | EN |
| Incoloy 800 | N08800 | 1.4876 | NCF 800 | NA 15 | 3I/670 | Z8NC32-21 | X10NiCrAlTi32-20 |
| Incoloy 800H | N08810 | 1.4958 / 1.4876 | NCF 800H | NA 15(H) | 3I/670 | Z8NC33-21 | X5NiCrAlTi31-20 |
| Incoloy 800HT | N08811 | 1.4859 / 1.4876 | NCF 800HT | NA 15(HT) | 3I/670 | - | X8NiCrAlTi32-21 |
Applications & Industries Served
The balanced nickel-iron-chromium chemistry of Incoloy 800 alloys makes them the preferred choice for applications that combine thermal stress, oxidizing atmospheres, and long-term structural loads:
| Industry | Application |
| Petrochemical & Refining | Reformer tubes, furnace components, cracking furnace radiant coils |
| Power Generation | Superheater & reheater tubing, steam headers, boiler components |
| Heat Exchangers | Shell-and-tube exchangers, condensers, economizers |
| Chemical Processing | Reactors, pressure vessels, agitators, chemical tanks |
| Oil & Gas | Subsea components, high-pressure pipelines, wellhead equipment |
| Aerospace | Jet engine components, exhaust systems, thermal shields |
| Nuclear Energy | Heat transfer loops, reactor internals, steam generators |
| Food & Pharmaceutical | High-purity process equipment, sanitary piping |
| Pulp & Paper | Digesters, blow tanks, sulfite plant components |
| Desalination Plants | Evaporator tubes, brine heater components |
Key Features & Advantages of Incoloy 800 Round Bar
- Exceptional oxidation resistance at temperatures up to 1100°C
- Superior resistance to carburization and nitriding environments
- Excellent creep and stress rupture strength, especially 800H and 800HT
- Outstanding resistance to chloride stress corrosion cracking
- High fatigue strength under cyclic thermal loading
- Good weldability and formability in both hot and cold conditions
- Maintains structural stability over long-term high-temperature service
- Compatible with most standard welding consumables (INCO-WELD A, INCONEL FM82)
- Resistant to sigma-phase embrittlement
- Available in all international standard equivalents
Incoloy 800 vs 800H vs 800HT - Grade Comparison
| Comparison Factor | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
| Carbon Content | 0.10 max | 0.05 - 0.10 | 0.06 - 0.10 |
| Grain Size Control | No | Yes (coarser grain) | Yes (coarser grain) |
| Al + Ti Control | Standard | Standard | 0.85-1.20% min |
| Max Service Temp. | ~815°C | ~980°C | ~1100°C |
| Creep Strength | Moderate | High | Highest |
| Oxidation Resistance | Good | Very Good | Excellent |
| Carburization Resistance | Good | Very Good | Excellent |
| ASTM Standard | B408 | B408 | B408 |
| Preferred Application | General purpose | High-temperature service | Extreme-temperature service |
| Typical Cost Index | Base | ~5-8% premium | ~8-12% premium |
Manufacturing Process & Quality Assurance at Unifit Fastener
Manufacturing Techniques
- Hot Rolling - for larger diameter bars requiring high structural integrity
- Cold Drawing - produces tight tolerances, bright surface finish, and improved mechanical properties
- Forging - for custom shapes, flanges, and heavy-section billets
- Centreless Grinding & Peeling - ensures precise OD and surface roughness Ra
- Solution Annealing - relieves stresses and restores optimal corrosion resistance
In-House Testing & Inspection
| Test Category | Tests Performed |
| Chemical Analysis | Optical Emission Spectroscopy (OES), Spectro Analysis, PMI Testing |
| Mechanical Testing | Tensile, Yield, Elongation, Reduction of Area, Hardness (Brinell/Rockwell) |
| Non-Destructive Testing | Ultrasonic Testing (UT), Eddy Current Testing, Radiography (RT) |
| Corrosion Testing | IGC Test, Pitting Resistance Test, Stress Corrosion Cracking (NACE TM0177) |
| Dimensional Inspection | Diameter, Length, Straightness, Surface Roughness Measurement |
| Documentation | Mill Test Certificate (MTC), Country of Origin, Bill of Lading, Copy of Invoice |
Certifications & Standards Compliance
- ISO 9001:2015 Certified Quality Management System
- ASTM B408 / ASME SB408 - Specification for Nickel-Iron-Chromium Alloy Rod and Bar
- NACE MR0175 / ISO 15156 - Sour service compliance
- PED (Pressure Equipment Directive) compliant
- Third-party inspection available: SGS, Bureau Veritas, TUV, Lloyds Register
- Mill test certificates traceable to heat number and chemical batch
Incoloy 800 / 800H / 800HT Round Bar - Indicative Price Range
Prices vary based on grade, size, quantity, surface finish, and delivery terms. Contact Unifit Fastener for a current and competitive quote.
| Product | Price Range (Indicative FOB) |
| Incoloy 800 Tie Rods | US $0.50 - $1,000 / Piece |
| Incoloy 800 Bright Bars | US $300 - $500 / Ton |
| Alloy UNS N08810 Hexagonal Bars | US $1 - $900 / Piece |
| Alloy 800 Hollow Bars | US $0.50 - $1,000 / Piece |
| Incoloy 800 Threaded Bars | US $1 - $300 / Piece |
Note: Prices are indicative and subject to change. Actual pricing depends on specifications, quantity, and market conditions. Request a formal quotation for accurate pricing.
Our Related Products
Frequently Asked Questions (FAQs)
All three are nickel-iron-chromium alloys from the same family but with distinct metallurgical differences. Incoloy 800 (UNS N08800) is a general-purpose grade with good oxidation and corrosion resistance up to ~815°C. Incoloy 800H (UNS N08810) has a controlled carbon range (0.05-0.10%) and coarser grain size, enhancing creep strength for service above 600°C. Incoloy 800HT (UNS N08811) additionally controls Al+Ti content (0.85-1.20% combined) for maximum strength and stability at temperatures up to 1100°C.
The primary standard is ASTM B408 for rod and bar, which covers all three grades: N08800, N08810, and N08811. The equivalent pressure vessel code standard is ASME SB408.
Unifit Fastener supplies Incoloy 800HT round bar from 3 mm to 800 mm in diameter. Bright bars are available from 4 mm to 500 mm OD. Hex bars range from 2 mm to 100 mm A/F. Custom diameters and cut-to-length services are available on request.
Available finishes include Black, Bright, Peeled & Polished, Rough Turned, Centreless Ground, Solution Annealed, and Hairline finish.
The price depends on grade, diameter, finish, quantity, and delivery terms. For accurate and current pricing in Indian Rupees or USD, contact Unifit Fastener with your exact specifications and required quantity.
Yes. Incoloy 800, 800H, and 800HT all exhibit excellent weldability using TIG (GTAW), MIG (GMAW), and stick welding. Recommended filler metals include INCO-WELD A Electrode and INCONEL Filler Metal 82.
Every shipment is accompanied by a documentation package including EN 10204 3.1 or 3.2 Mill Test Certificate, chemical analysis, mechanical test report, hardness certificate, heat treatment report, third-party inspection reports on request, country of origin certificate, and bill of lading.
Request a Quote - Fast Response Within 24 Hours
Ready to source Incoloy 800, 800H, or 800HT Round Bars for your next project? Unifit Fastener offers:
- Competitive pricing with no hidden charges
- ISO 9001:2015 certified quality with full mill test reports
- Custom sizes, grades, and finishes on short lead times
- Export packaging compliant with international shipping regulations
- Dedicated technical support from experienced metallurgical engineers
