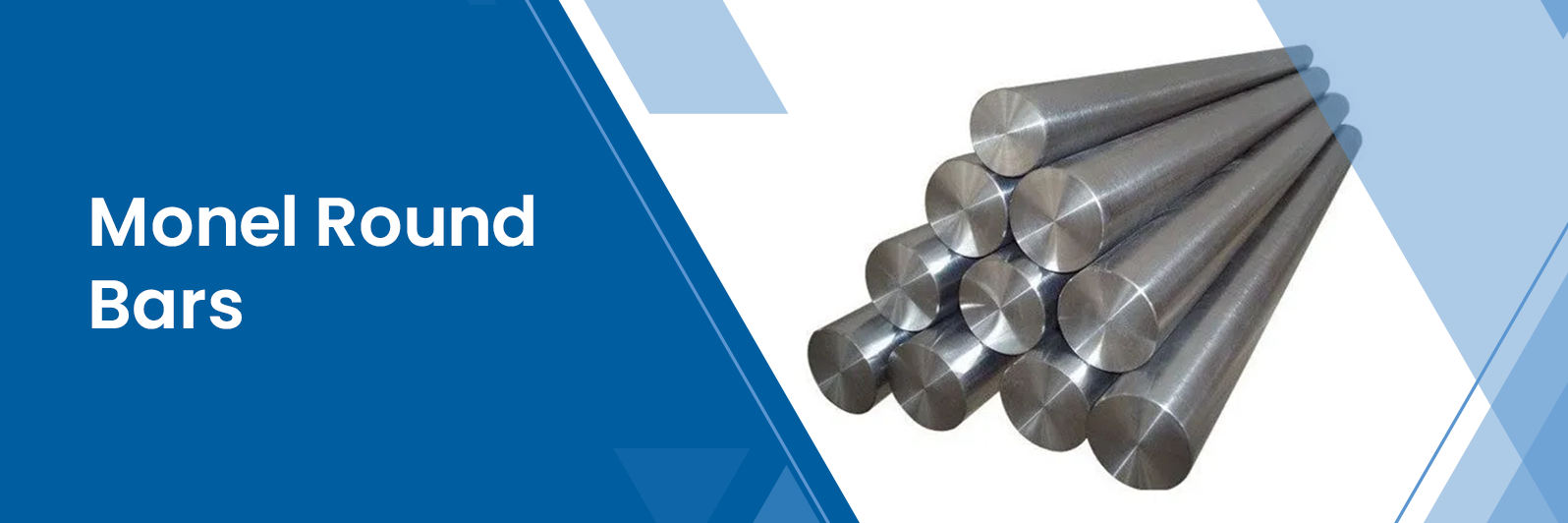

Monel Round Bar Manufacturer, Supplier & Stockist
Monel alloys are known to be very durable, especially in harsh marine environments. Monel round bars have a high level of copper, which increases their resistance to corrosion where there is a solution of brine or sodium chloride. Since most metals normally contain an average of 3.5 percent of salt content by weight in oceans and seas, the problem of corrosion is of great concern to the standard metals. Salt contains chlorine, which is an aggressive corrosion element that can destroy passive corrosion layers and hasten rust development.
But the nickel-copper mixture of Monel produces one of the most robust alloys, which has an incredible performance when subjected to marine conditions. Unifit Fastener Monel square and hex bars are designed in such a manner that they are able to resist these corrosive problems. These alloys have low levels of corrosion, even in high-velocity water (e.g., 10 m/s), and are significantly better than the standard stainless steel alloys, such as 304.
The hygroscopic property of salt causes moisture to be retained on the metal surfaces, and this acts even more to enhance corrosion. However, Monel flat bars are immune to the harmful effects of salty sprays, and because of this, they can be used in offshore and coastal applications in the long term. Also, Monel 400 round bar and monel k500 round bar are superior in the prevention of biofouling and in MIC (microbially induced corrosion), which is why they are safe in pipelines, pumps, valves, and other essential parts of the marine devices.
In projects that need dependable, corrosion-free fasteners and other structural elements, the Unifit Fastener has solutions in Monel alloy, which will perform miraculously in the most extreme conditions at sea.
Request QuoteTable of Contents
- Monel Round Bar Material Grades
- Specification of ASTM B164 Monel Round Bar
- Types of Monel Round Bar
- Equivalent Material of ASTM B164 Monel Round Bar
- Chemical Properties of Monel Round Bars
- Monel Round Bar Weight Chart
- Monel Alloy Hex Bar Sizes
- Stock List of Monel Round Bar
- Monel Welding Rod Tolerances
- ASME SA160 Monel Round Bar Size Chart
- ASTM B164 Monel Rod Price List
- Monel Round Bar Stock List
- Applications of Monel Round Bars (ASTM B164)
- People Ask About Nuts Manufacturer
Monel Round Bar Material Grades
Monel 400 Round Bars
Monel K500 Round Bars
Specification of ASTM B164 Monel Round Bar
| Specification | Details |
|---|---|
| Standards | EN, ASME, AISI, BS, JIS, DIN, ASTM |
| Round Bar Size | Thickness: 2 – 100 mm |
| Tolerance | K11, H8, H12, K12, H13, H10, H9, K9, K10, H11, or customized |
| Forms Available | Round, Rod, T-Bars, Channel Bars, Precision Ground Bars, Flat Bars, Square, Blocks, Rings, Hollow, Triangle, Threaded, Hex (A/F), Rectangle, Half Round Bars, Profiles, Billet, Ingot, Forging, I/H Bars |
| Flat Bar Size | Thickness: 3 – 800 mm; Width: 10 – 500 mm |
| Angle Bar Size | 3 × 20 × 20 mm to 12 × 100 × 100 mm |
| Section Bar Thickness | 3 – 12 mm |
| Channel Bar Size | Thickness: 5 – 6 mm; Section: 80 × 40 mm to 150 × 75 mm |
| Hollow Bar Size | OD: 32 – 250 mm; ID: 16 – 200 mm |
| Rectangle Bar Size | 34 × 30 mm to 295 × 1066 mm |
| Billet Size | Diameter: 0.5 – 495 mm |
| Surface Finish | Hot Rolled Pickled, Bright, Sand Blasted, Cold Drawn, Hairline, Polished |
| Finish Options | Cold (Bright) Drawn, Hot Rolled, Slit Rolled Edge, Peeled, Centreless Ground, Hot Rolled Annealed, Rough Turned, Polished, Grinding & Black |
| Manufacturing Techniques | Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar/Rod |
| Condition | Annealed, Tempered, Hardened |
| Processing Capability | Cutting up to 650 mm |
Send Your Enquiry
Types of Monel Round Bar
Monel Square Bar
Monel Shaft
Monel Polished Bar
Monel Metal Rounds
Monel Metal Bar Stock
Monel Metal Annealed Bar
Monel Material Peeled Round Bars
Monel Material Hot Rolled Bars
Monel Material Bright Bar
Monel Material Bloom
Monel K500 Flat Bar
Monel Hex Bar
Monel Forged Bar
Monel Alloy Ground & Rolled Polished Bar
Monel Alloy Cold Drawn Bar
Monel Alloy Billet
ASTM B865 UNS N05500 Rod
Monel Alloy Rectangular Bar
Equivalent Material of ASTM B164 Monel Round Bar
| Grade | Standard | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|---|
| Monel 400 | ASTM B164 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
| Monel K500 | ASTM B164 | 2.4375 | N05500 | – | – | – | – | – |
Chemical Properties of Monel Round Bars
| Designation | C% | Co% | Cr% | Mo% | Ni% | V% | W% | Al% | Cu% | Nb/Cb/Ta% | Ti% | Fe% | Others |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Monel 400 | 0.12 | – | – | – | 65.0 | – | – | – | 32.0 | – | – | 1.5 | Mn 1.0 |
| Monel 401 | 0.10 | – | – | – | 43.0 | – | – | – | 53.0 | – | – | 0.75 | Si 0.25; Mn 2.25 |
| Monel 404 | 0.15 | – | – | – | 52.0–57.0 | – | – | 0.05 | balance | – | – | 0.50 | Mn 0.10; Si 0.10; S 0.024 |
| Monel 502 | 0.10 | – | – | – | 63.0–67.0 | – | – | 2.5–3.5 | balance | – | 0.50 | 2.0 | Mn 1.5; Si 0.5; S 0.010 |
| Monel K500 | 0.13 | – | – | – | 64.0 | – | – | 2.8 | 30.0 | – | 0.6 | 1.0 | Mn 0.8 |
| Monel R405 | 0.15 | – | – | – | 66.0 | – | – | – | 31.0 | – | – | – | – |
Monel Round Bar Weight Chart
| Size (inches/mm) | Weight (kg/m) | Weight (kg/ft) |
|---|---|---|
| 1/8" / 3 mm | 0.062 | 0.019 |
| 5/32" / 5 mm | 0.095 | 0.029 |
| 3/16" / 6 mm | 0.141 | 0.043 |
| 7/32" / 7 mm | 0.190 | 0.058 |
| 1/4" / 8 mm | 0.249 | 0.076 |
| 5/16" / 10 mm | 0.387 | 0.118 |
| 3/8" / 11 mm | 0.557 | 0.170 |
| 7/16" / 12 mm | 0.761 | 0.232 |
| 1/2" / 13 mm | 0.994 | 0.303 |
| 9/16" / 14 mm | 1.256 | 0.383 |
| 5/8" / 15 mm | 1.551 | 0.473 |
| 11/16" / 17 mm | 1.880 | 0.573 |
| 3/4" / 18 mm | 2.237 | 0.682 |
| 20 mm | 2.470 | 0.753 |
| 22 mm | 2.979 | 0.908 |
| 24 mm | 3.543 | 1.080 |
| 25 mm | 3.871 | 1.180 |
| 26 mm | 4.170 | 1.271 |
| 27 mm | 4.490 | 1.368 |
| 30 mm | 5.548 | 1.691 |
| 32 mm | 6.314 | 1.894 |
| 35 mm | 7.553 | 2.390 |
| 36 mm | 7.999 | 2.438 |
| 38 mm | 8.903 | 2.792 |
| 40 mm | 9.872 | 3.009 |
| 45 mm | 12.555 | 3.807 |
| 48 mm | 14.205 | 4.330 |
| 50 mm | 15.414 | 4.698 |
| 60 mm | 22.205 | 6.768 |
| 1" / 25.4 mm | 3.00 | 0.914 |
| 2" / 50 mm | 15.906 | 4.848 |
| 3" / 75 mm | 35.762 | 10.900 |
| 4" / 100 mm | 63.340 | 19.306 |
| 5" / 125 mm | 99.940 | 30.461 |
| 6" / 150 mm | 143.900 | 43.860 |
| 7" / 175 mm | 196.000 | 59.432 |
| 8" / 200 mm | 254.550 | 77.586 |
| 10" / 250 mm | 397.140 | 121.048 |
Monel Alloy Hex Bar Sizes
| Hex Bar Size (inches) | Weight per Ft (lbs) | Weight per 12′ (lbs) |
|---|---|---|
| 3/16″ | 0.104 | 1.248 |
| 1/4″ | 0.180 | 2.160 |
| 5/16″ | 0.290 | 3.480 |
| 3/8″ | 0.625 | 4.920 |
| 7/16″ | 0.560 | 6.720 |
| 1/2″ | 0.740 | 8.880 |
| 9/16″ | 0.930 | 11.160 |
| 5/8″ | 1.150 | 13.800 |
| 11/16″ | 1.390 | 16.680 |
| 3/4″ | 1.660 | 19.920 |
| 13/16″ | 1.950 | 23.400 |
| 7/8″ | 2.300 | 27.600 |
| 15/16″ | 2.625 | 31.200 |
| 1″ | 2.900 | 34.800 |
| 1-1/16″ | 3.300 | 39.600 |
| 1-1/8″ | 3.700 | 44.400 |
| 1-1/4″ | 4.625 | 55.200 |
| 1-5/16″ | 5.100 | 61.200 |
| 1-3/8″ | 5.625 | 67.200 |
| 1-7/16″ | 6.100 | 73.200 |
| 1-1/2″ | 6.625 | 79.200 |
| 1-5/8″ | 7.800 | 93.600 |
| 1-3/4″ | 9.030 | 108.360 |
| 1-7/8″ | 10.400 | 124.800 |
| 2″ | 11.800 | 141.600 |
| 2-1/4″ | 14.920 | 179.040 |
| 2-3/8″ | 16.920 | 203.040 |
| 2-1/2″ | 18.420 | 221.040 |
| 3″ | 26.530 | 318.360 |
Stock List of Monel Round Bar
| Diameter (in) | Diameter (mm) | Size (in fractional) | Density (lbs/in³) | Weight (lbs/ft) | Weight (kg/m) |
|---|---|---|---|---|---|
| 0.25 | 6.35 | 1/4 | 0.319 | 0.187 | 0.2783 |
| 0.281 | 7.1374 | 9/32 | 0.319 | 0.237 | 0.3527 |
| 0.343 | 8.7122 | 11/32 | 0.319 | 0.354 | 0.5268 |
| 0.375 | 9.525 | 3/8 | 0.319 | 0.421 | 0.6265 |
| 0.406 | 10.3124 | 13/32 | 0.319 | 0.495 | 0.7367 |
| 0.437 | 11.0998 | 7/16 | 0.319 | 0.574 | 0.8542 |
| 0.468 | 11.8872 | 15/32 | 0.319 | 0.649 | 0.9658 |
| 0.5 | 12.7 | 1/2 | 0.319 | 0.749 | 1.1147 |
| 0.531 | 13.4874 | 17/32 | 0.319 | 0.846 | 1.2590 |
| 0.562 | 14.2748 | 9/16 | 0.319 | 0.948 | 1.4108 |
| 0.593 | 15.0622 | 19/32 | 0.319 | 1.06 | 1.5775 |
| 0.625 | 15.875 | 5/8 | 0.319 | 1.17 | 1.7412 |
| 0.656 | 16.6624 | 21/32 | 0.319 | 1.29 | 1.9198 |
| 0.687 | 17.4498 | 11/16 | 0.319 | 1.42 | 2.1132 |
| 0.718 | 18.2372 | 23/32 | 0.319 | 1.55 | 2.3067 |
| 0.75 | 19.05 | 3/4 | 0.319 | 1.69 | 2.5151 |
| 0.781 | 19.8374 | 25/32 | 0.319 | 1.83 | 2.7234 |
| 0.812 | 20.6248 | 13/16 | 0.319 | 1.98 | 2.9466 |
| 0.843 | 21.4122 | 27/32 | 0.319 | 2.13 | 3.1699 |
| 0.875 | 22.225 | 7/8 | 0.319 | 2.29 | 3.4080 |
| 0.906 | 23.0124 | 29/32 | 0.319 | 2.46 | 3.6610 |
| 0.937 | 23.7998 | 15/16 | 0.319 | 2.63 | 3.9140 |
| 0.968 | 24.5872 | 31/32 | 0.319 | 2.81 | 4.1818 |
| 1 | 25.4 | 1 | 0.319 | 3.00 | 4.4646 |
Monel Welding Rod Tolerances
| Section / Shape | Size (mm) | Permitted Variation (mm) |
|---|---|---|
| Flat (Thickness) | < 18 | +0 to -0.110 |
| >18 ≤ 30 | +0 to -0.130 | |
| >30 ≤ 50 | +0 to -0.250 | |
| >50 ≤ 80 | +0 to -0.350 | |
| Flat (Width) | < 18 | +0 to -0.110 |
| >18 ≤ 30 | +0 to -0.130 | |
| >30 ≤ 50 | +0 to -0.160 | |
| >50 ≤ 80 | +0 to -0.190 | |
| >80 ≤ 100 | +0 to -0.220 | |
| >100 ≤ 130 | +0 to -0.350 | |
| >130 ≤ 160 | +0 to -1.00 | |
| >160 ≤ 320 | ±1.00 | |
| Square & Hexagon | ≥6 ≤ 18 | +0 to -0.090 |
| >18 ≤ 30 | +0 to -0.110 | |
| >30 ≤ 50 | +0 to -0.130 | |
| >50 ≤ 80 | +0 to -0.160 | |
| >80 ≤ 105 | +0 to -0.250 | |
| Round | ≥6 ≤ 18 | +0 to -0.070 |
| >18 ≤ 30 | +0 to -0.085 | |
| >30 ≤ 50 | +0 to -0.100 | |
| >50 ≤ 80 | +0 to -0.120 | |
| >80 ≤ 100 | +0 to -0.140 |
ASME SA160 Monel Round Bar Size Chart
| US Bar | Bar Size (US) | Metric (mm) | Bar Size (Metric) | Japanese (mm) | Bar Size (JP) | Canadian / ASTM (mm) | Bar Size (CAN/ASTM) |
|---|---|---|---|---|---|---|---|
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | – | – |
| 1.375 | #11 | 14 | 14 | 35 | 35 | – | – |
| 1.500 | #12 | 16 | 16 | 38 | 38 | – | – |
| 1.625 | #13 | 18 | 18 | 41 | 41 | – | – |
| 1.750 | #14 | 20 | 20 | 44 | 44 | – | – |
| 1.875 | #15 | 22 | 22 | 48 | 48 | – | – |
| 2.000 | #16 | 25 | 25 | 51 | 51 | – | – |
| 2.250 | #18 | 28 | 28 | 57 | 57 | – | – |
| – | – | 32 | 32 | – | – | – | – |
| – | – | 36 | 36 | – | – | – | – |
| – | – | 40 | 40 | – | – | – | – |
| – | – | 44 | 44 | – | – | – | – |
| – | – | 50 | 50 | – | – | – | – |
ASTM B164 Monel Rod Price List
| Description | Price (INR per unit) | Price (USD) | Price (EURO) |
|---|---|---|---|
| Nickel Copper Round Bar, Grade Niclal 400 (Monel 400), Dia 12.2 × 3500 mm | 1,069 | 14.50 | 11.96 |
| Nickel Alloy Round Bar, Grade Monel 400 UNS N04400 | 869 | 11.79 | 9.72 |
| Monel 400 Round Bar (Goods for Re-export, No Ex-Bonding Allowed) | 37,404 | 507.48 | 418.44 |
| Monel 400 Round Bar (Goods for Re-export, No Ex-Bonding Allowed) | 106,270 | 1,441.82 | 1,188.84 |
| Nickel Copper Round Bar, Monel 400, Dia 14.28 × 3000 mm H12 | 1,254 | 17.01 | 14.03 |
| Nickel Copper Round Bar, Grade Niclal 400 (Monel 400), Dia 12.2 × 3500 mm | 1,190 | 16.15 | 13.31 |
| Nickel Alloy Round Bar, Grade Monel [Ni 65%, Cu 32%] | 447 | 6.06 | 5.00 |
| Round Bar Niclal 400, Dia 12.2 × 3500 mm H12 (Monel 400 ASTM B-164) | 1,212 | 16.44 | 13.56 |
Monel Round Bar Stock List
| UNS N04400 Monel 400 Rectangular Bars | UNS 4400 Monel Polished Bars Stock |
| Monel 400 Square Bars Bright | Monel 400 Grade Bright Bars Cold Drawn |
| ASTM B164 Alloy 400 Square Bars Annealed | Monel 400 UNS N04400 Bright Bars Flat |
| Monel 2.4360 Threaded Bars M16 | Monel 400 Threaded Rods |
| Alloy 400 Monel 2.4360 Rectangular Bars Cold Drawn | Werkstoff 2.4360 Monel Polished Square Bars |
| Monel 2.4360 Rectangular Bars Polished | Monel ASTM B164 Polished Round Bars |
| 2.4360 Monel 400 Threaded Bars M12 | Monel 400 ASTM B164 Threaded Bars Stock |
| Monel UNS N04400 Square Bars | UNS N04400 Monel 400 Polished Flat Bars |
| 2.4360 Monel 400 Rectangular Bars Bright | Monel Grade 400 Bright Bars Hollow |
Applications of Monel Round Bars (ASTM B164) – Unifit Fastener
Monel round bars are renowned for their exceptional corrosion resistance, high strength, and durability in harsh environments. Common applications include:
- Marine Industry – Ideal for shipbuilding, offshore platforms, seawater piping, valves, and pumps due to high resistance to saltwater corrosion.
- Chemical Processing – Used in reactors, heat exchangers, tanks, and pipelines for aggressive chemicals.
- Aerospace – Components exposed to high-stress and corrosive atmospheres.
- Oil & Gas Industry – Suitable for drilling equipment, valves, and fittings in offshore and onshore operations.
- Power Plants & Instrumentation – For control rods, shafts, fasteners, and sensors in extreme conditions.
- High-Temperature Applications – Monel maintains mechanical integrity in elevated temperatures and thermal cycling.
People Ask About Nuts Manufacturer
What is ASTM B164 Monel Round Bar?
ASTM B164 is the standard specification for nickel-copper alloy (Monel) bars. Monel 400 and K500 are the most common grades, offering excellent corrosion resistance and high strength.
What are the common sizes of Monel round bars?
Monel bars are available in diameters from 3 mm (1/8") up to 300 mm (12") and in lengths up to 12 feet or customized as per requirement.
What is Monel used for?
Monel is a nickel-copper alloy used for its excellent corrosion resistance and high strength. It is commonly used in marine, offshore, chemical, oil & gas, and aerospace applications, including pumps, valves, fasteners, heat exchangers, and seawater equipment.
What is an EN8 round bar?
An EN8 round bar is a medium carbon steel known for good strength and machinability. It is widely used in shafts, bolts, studs, gears, and general engineering components and can be heat treated for improved performance.
