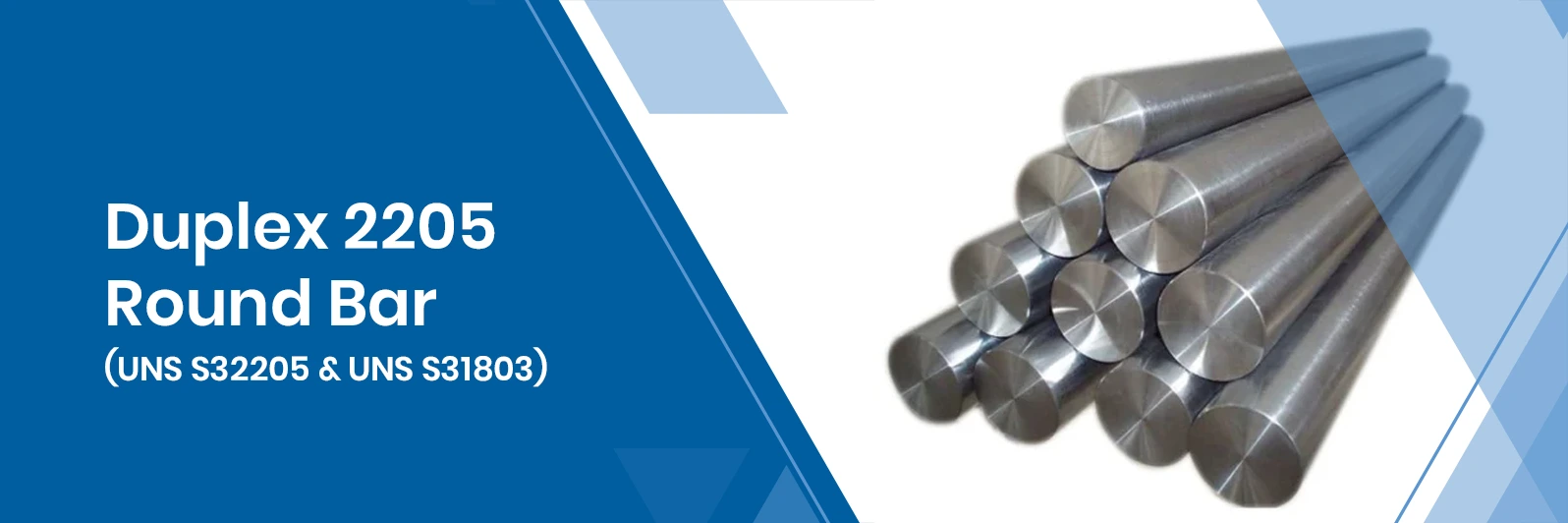

Duplex 2205 Round Bar (UNS S32205 & UNS S31803)

Unifit Fastener has earned a reputation as a premier manufacturer, exporter, and supplier of duplex steel round bars across industries such as automobiles, pipelines, heavy engineering, and railways. Our product line includes the highly demanded duplex 2205 round bar, offered in grades S31803 and S32205, serving critical mechanical and structural needs.

Each duplex steel bar is carefully finished to perfection, and customers can select from a versatile collection of duplex round bars, duplex 2205 round bars, and even 2507 round bars, all tailored to their unique project requirements. The robust and durable 2205 round bar is produced using top-grade raw materials and advanced processes, ensuring optimal strength and performance in challenging applications.

Request Quote

What is Duplex 2205 / UNS S32205 Round Bar?

Duplex steels combine the best properties of both ferritic and austenitic stainless steels, resulting in materials with enhanced durability and corrosion resistance. A duplex steel round bar, especially the duplex 2205 round bar, features a dual-phase microstructure strengthened with nitrogen for even better mechanical performance. Unlike fully austenitic grades like 304 or solely ferritic grades like 430, duplex round bar and 2205 round bar offer a balanced solution, making them a top choice for demanding applications where both strength and corrosion resistance are required. The duplex steel bar category includes materials that don't fit entirely within the traditional austenitic or ferritic families, bridging the gap for enhanced versatility and performance.

ASTM A276 Type 2205 Round Bar Material Specifications

Find out the essential material specifications for duplex steel round bar, including ASTM A276 Type 2205 standards and quality parameters for reliable industrial performance.

Specification ASTM A276, A479 / ASME SA276, SA479, ASTM A182
Standard EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars Outside Diameter in the range of 4mm to 500mm
Bright Bars Outside Diameter in the range of 4mm to 100mm
Hex Bars 18mm – 57mm (11/16" to 2-3/4")
Square Bars 18mm – 47mm (11/16" to 1-3/4")
Finish Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length 1 to 6 Meters, Custom Cut Lengths
Form Round, Square, Hex (A/F), Rectangle Etc.

Available Types of Duplex 2205 / S32205 Round Bars

Discover the different forms of duplex 2205 round bar offered, from hex and square bars to precision rods for varied structural and mechanical needs.

Duplex S31803/S32205 Bars & Rods Types

  • Duplex S31803 Polish Round Bar
  • Duplex S32205 Cold Drawn Bars
  • Duplex UNS S31803 Hexagonal Bar
  • UNS S32205 Duplex Steel Forged Bars
  • Duplex Steel S31803 Threaded Bar
  • Duplex Steel S32205 Hollow Bars
  • UNS S31803 Duplex Steel Black Bar
  • Gr. S31803 Duplex Bright Round Bar
  • Duplex Steel S32205 Hexagon Bar
  • Duplex Steel S31803/S32205 Rods
  • Duplex 2205 Forged Round Bar
  • Duplex Steel S31803 Half-Round Bar
  • Duplex Steel S32205 Triangle Bar
  • Duplex Steel S31803 Rectangular Bar
Duplex Steel S31803/S32205 Round Bars

UNS S32205 / S31803 Duplex Steel Equivalent Grades & Standards

Explore how UNS S32205 and S31803 duplex steel round bar equivalents compare across international grading and specification standards for seamless integration in projects.

STANDARDWERKSTOFF NR.UNS
Duplex 22051.4462S31803 / S32205

ASTM A276 Type 2205 Round Bar HS Code

Learn about the official HS code classification for duplex 2205 round bar, facilitating smooth logistics and compliance in global trade.

HS CodeDescription
72221119SS DUPLEX ROUND BAR (HOT WORKED STAINLESS BAR STEEL ROLLED),MBR-SANMAC2205-35 FL-1-1700
72221119SS DUPLEX ROUND BAR (HOT WORKED STAINLESS BAR STEEL ROLLED),MBR-SANMAC2205-40 FL-1-1250
72221119DUPLEX ROUND BAR (HOT WORKED STAINLESS BAR STEEL ROLLED),MBR-SANMAC2205-20 FL-2-2200
72221119DUPLEX ROUND BAR (HOT WORKED STAINLESS BAR STEEL ROLLED),MBR-SANMAC2205-50 FL-1-1600
72221119DUPLEX ROUND BAR (HOT WORKED STAINLESS BAR STEEL ROLLED),MBR-SANMAC2205-40 FL-2-1650
72221119DUPLEX ROUND BAR (HOT WORKED STAINLESS BAR STEEL ROLLED),MBR-SANMAC2205-35 FL-1-1500
72221119DUPLEX ROUND BAR (HOT WORKED STAINLESS BAR STEEL ROLLED),MBR-SANMAC2205-60 FL-1-0500
72222019BAR STEEL STAINLESS SPECIFICATION - MBR-SANMAC2205-90 HEAT NO- 545377 (SS DUPLEX ROUND BARS)
72223099STAINLESS STEEL ROUND BARS DUPLEX GRADE 2205 EX-STOCK
72221199SS DUPLEX ROUND BARS - MBR-SANMAC2205-125, FL-1-2000
72221119SS DUPLEX ROUND BARS (HOT WORKED STAINLESS BAR STEEL ROLLED) MBR-SANMAC2205 -75 FL-1-2000-

Duplex 2205 Chemical Composition (S32205 & S31803)

Explore the precise chemical blend that gives duplex 2205 round bar superior corrosion resistance and mechanical strength.

GradeCMnSiPSCrMoNiNFe
S318030.030 max2.00 max1.00 max0.030 max0.020 max22.0 – 23.03.0 – 3.54.50 – 6.500.14 – 0.2063.72 min
S322050.030 max2.00 max1.00 max0.030 max0.020 max21.0 – 23.02.50 - 3.504.50 – 6.500.8 – 0.2063.54 min

Mechanical & Physical Properties of Duplex 2205 Round Bars

Understand the key physical and mechanical properties that make the duplex steel round bar exceptional for demanding environments.

Tensile Strength, ksi 0.2% Yield Strength, ksi Elongation, % Hardness [HRC]
90 min 65 min 25 min 293 max

Duplex 2205 Round Bar Size Chart (S32205 & S31803)

Review a detailed size chart of duplex round bar options, highlighting 2205, S32205, and S31803 grades for accurate product selection.

Duplex 2205 Round bar TypeSIZES (mm)SIZES (Inches)ISO Tolerance
2205 Duplex Stainless Steel Cold Drawn and Polish Round Bar3.00 – 75.001/8" – 3.00"h8-h9-h10-h11
Duplex SS 2205 Cold Drawn and Ground Bar10.00 – 75.005/6" – 2.50"h8-h9-h10-h11
UNS S32205 Peeled and Polished Round Bar40.00 – 150.001.50" – 6.00"h11, h11-DIN 1013
Duplex 2205 Peeled and Ground Bar20.00 – 50.003/4″ – 2.00"h9-h10-h11

2205 Duplex Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).

The sizes of 2205 Duplex Stainless Steel Bars can also be selected when using the THD model.

Duplex 2205 Round bar Size & Dimensions of Duplex 2205

MetricUS BarASTM/ CanadianJapanese
Bar SizeDiam. (mm)Bar SizeDiam. (mm)
55#20.250
5.55.5#30.375
66#40.500
77#50.625
88#60.750
99#70.875
1010#81.000
1111#91.125
1212#101.250
1414#111.375
1616#121.500
1818#131.625
2020#141.750
2222#151.875
2525#162.000
2828#182.250
3232
3636
4040
4444
5050

Weight Chart of Werkstoff Nr. 1.4462 Round Bar

Refer to a handy weight chart for duplex steel round bar, Werkstoff Nr. 1.4462, to assist with planning and inventory control.

Duplex 2205 Round bar SizeKgs / FootKgs / Mtr SizeKgs / FootKgs / Mtr SizeKgs / FootKgs / Mtr
3mm0.0170.05520mm0.7532.4703"10.90035.762
1/8"0.0190.06222mm0.9082.9793-1/4"12.80041.996
5/32"0.0290.0957/8"0.9263.0383-1/2"14.85048.772
4mm0.0300.09824mm1.0803.5433-3/4"17.00155.780
3/16"0.0430.14125mm1.1803.8714"19.30663.340
5mm0.0470.1541"1.2103.9704-1/4"21.90872.249
7/32"0.0580.19026mm1.2714.1704-1/2"24.448780.340
6mm0.0680.22327mm1.3684.4904-3/4"27.36690.249
1/4"0.0760.2491-1/8"1.5345.0335"30.46199.940
7mm0.0910.29830mm1.6915.5485-1/2"36.690121.000
5/16"0.1180.3871-1/4"1.9246.3496"43.860143.900
8mm0.1200.39832mm1.8946.3146-1/2"51.093167.630
9mm0.1520.4981-3/8"2.3037.5507"59.432196.000
3/8"0.1700.55735mm2.3907.5537-1/2"68.226225.000
10mm0.1890.62036mm2.4387.9998"77.586254.55
11mm0.2280.74838mm2.7928.90310"121.048397.140
7/16"0.2320.7611-1/2"2.7158.951
12mm0.2710.88940mm3.0099.872
1/2"0.3030.9941-5/8"3.20010.449
13mm0.3181.0431-3/4"3.71212.179
14mm0.3681.20745mm3.80712.555
9/16"0.3831.2561-7/8"4.26013.977
15mm0.4241.39148mm4.33014.205
5/8"0.4731.55150mm4.69815.414
16mm0.4811.5782"4.84815.906
17mm0.5431.7912-1/8"5.47517.963
11/16"0.5731.8802-1/4"6.13520.128
18mm0.6102.00160mm6.76822.205
3/4"0.6822.2372-3/8"6.83822.435
2-1/2"7.57624.856
2-5/8"8.35427.409
2-3/4"9.16930.083

Standard Tolerances & Lengths for SAF 2205 Round Bars

Check allowable tolerances and available lengths for SAF 2205 round bar to ensure fit and specification compliance.

Cold Drawn WERKSTOFF NR. 1.4462 Round Bar Tolerance & Steel Hexagon, Flat Tolerance (BS 970-3)

Tolerances for Cold Drawn Duplex Steel UNS S32205 Round Bar

Shape / SectionSize, diameter or width across flatsPermitted variation
mmmm
Round≥6 ≦ 18+ 0 to - 0.070
> 18 ≦ 30+ 0 to - 0.085
> 30 ≦ 50+ 0 to - 0.100
> 50 ≦ 80+ 0 to - 0.120
> 80 ≦ 100+ 0 to - 0.140
Flat (thickness)< 18+ 0 to - 0.110
> 18 ≦ 30+ 0 to - 0.130
> 30 ≦ 50+ 0 to - 0.250
> 50 ≦ 80+ 0 to - 0.350
Flat (width)< 18+ 0 to - 0.110
> 18 ≦ 30+ 0 to - 0.130
> 30 ≦ 50+ 0 to - 0.160
> 50 ≦ 80+ 0 to - 0.190
> 80 ≦ 100+ 0 to - 0.220
> 100 ≦ 130+ 0 to - 0.350
> 130 ≦ 160+ 0 to - 1.00
> 160 ≦ 320+ 1.00 to - 1.00
Square and
hexagon
≥ 6 ≦ 18+ 0 to - 0.090
> 18 ≦ 30+ 0 to - 0.110
> 30 ≦ 50+ 0 to - 0.130
> 50 ≦ 80+ 0 to - 0.160
> 80 ≦ 105+ 0 to - 0.250

Tolerances of Turned SAF 2205 Round Bar (BS 970-3)

Turned Duplex 2205 Round Bar Tolerances
Duplex 2205 Round Bar Size, diameterPermitted variation
mmmm
≧ 6 ≦ 18+ 0 to - 0.070
> 18 ≦ 30+ 0 to - 0.085
> 30 ≦ 50+ 0 to - 0.100
> 50 ≦ 80+ 0 to - 0.120
> 80 ≦ 120+ 0 to - 0.140
> 120 ≦ 180+ 0 to - 0.160
> 180 ≦ 250+ 0 to - 0.185
> 250 ≦ 315+ 0 to - 0.210
> 315 ≦ 400+ 0 to - 0.230
> 400+ 0 to - 0.250

Send Your Enquiry

Tolerances of Precision UNS S32205 Duplex Round Bar (BS 970-3)

Precision 1.4462 Duplex 2205 Round Bar Tolerances
SectionSize, diameterPermitted overall variation
mmClass AClass BClass C
Round≧ 6 <750.050.0250.013

Tolerance of 2205 Duplex Stainless Steel Bright Round Bar (BS EN ISO 286-2 )

Duplex 2205 Round Bar Tolerance ISO “H” Series in MM
NOMINAL SIZE DIAMETER mm h5h6h7h8h9H10H11h12
~ to 3+0.004/0+0.006/0+0.01/0+0.014/0+0.025/0+0.04/0+0.06/0+0.1/0
over 3 to 6+0.005/0+0.008/0+0.012/0+0.018/0+0.03/0+0.048/0+0.075/0+0.12/0
over 6 to 10+0.006/0+0.009/0+0.015/0+0.022/0+0.036/0+0.058/0+0.09/0+0.15/0
over 10 to 18+0.008/0+0.011/0+0.018/0+0.027/0+0.043/0+0.07/0+0.11/0+0.18/0
over 18 to 30+0.009/0+0.013/0+0.021/0+0.033/0+0.052/0+0.084/0+0.13/0+0.21/0
over 30 to 50+0.011/0+0.016/0+0.025/0+0.039/0+0.062/0+0.1/0+0.16/0+0.25/0
over 50 to 80+0.013/0+0.019/0+0.03/0+0.046/0+0.074/0+0.12/0+0.19/0+0.3/0
over 80 to 120+0.015/0+0.022/0+0.035/0+0.054/0+0.087/0+0.14/0+0.22/0+0.35/0
over 120 to 180+0.018/0+0.025/0+0.04/0+0.063/0+0.1/0+0.16/0+0.25/0+0.4/0
over 180 to 250+0.02/0+0.029/0+0.046/0+0.072/0+0.115/0+0.185/0+0.29/0+0.46/0

Surface Finishes of Duplex Steel S32205 Round Bars

Find out about the different surface finishing options for duplex steel bars, from polished and bright to matt and rough turns.

CDCold drawn
PPolished
BDBright drawn
SRESlit rolled edge
CGCentreless ground
HFHot finished
CFCold finished
HRAPHot rolled annealed and pickled
P&TPeeled and turned
RTRough turned/peeled
STSmooth turned
PRPeeled and reeled

Current Stock List of Duplex S32205 / S31803 Round Bars

Browse the latest inventory for duplex round bar products in S32205 and S31803 grades, available for immediate supply.

Alloy 2205 BilletsAlloy 2205 BarAlloy 2205 RodsAlloy 2205 Blooms
Alloy 2205 Grade Quenched & Tempered BilletsQuenched & Tempered 22cr Duplex Stainless Steel BarQuenched & Tempered Saf 2205 Duplex Stainless Steel RodsDuplex Type 2205 Quenched & Tempered Blooms
Alloy 2205 F60 Continuous Cast BilletsContinuous Cast Alloy 2205 Grade BarSaf 2205 Duplex Stainless Steel Concast Rods22cr Duplex Stainless Steel Continuous Cast Blooms
Alloy 2205 Grade Annealed BilletsDuplex Type 2205 Annealed Bar22cr Duplex Stainless Steel Annealed RodsDuplex SS 2205 Annealed Blooms
Alloy 2205 Grade Rolled BilletsDuplex Type 2205 Rolled BarRolled RodsDuplex Type 2205 Rolled Blooms
Cold Rolled Alloy 2205 Grade BilletsCold Rolled Duplex Stainless Steel Grade 2205 BarCold Rolled Duplex SS 2205 RodsCold Rolled Duplex Type 2205 Blooms
Alloy 2205 Grade Forged BilletsDuplex Type 2205 Forged BarDuplex Type 2205 Forged RodsSaf 2205 Duplex Stainless Steel Forged Blooms
Alloy 2205 Grade Peeled BilletsDuplex SS 2205 Peeled BarDuplex Type 2205 Peeled RodsPeeled Alloy 2205 F51 Blooms
Saf 2205 Duplex Stainless Steel Hardened & Tempered BilletsHardened & Tempered Duplex Type 2205 BarHardened & Tempered Alloy 2205 F60 RodsHardened & Tempered Alloy 2205 Grade Blooms
Alloy 2205 F60 Billets ShapeAlloy 2205 Bar Shape2205 Duplex Stainless Steel Rods Shape2205 Duplex Stainless Steel Blooms Shape
Alloy 2205 Werkstoff 1.4462 Round Corner Square Billets22 Cr Duplex Steel Round Corner Square Bar2205 Duplex Stainless Steel Round Corner Square RodsAlloy 2205 F51 Round Corner Square Blooms
Alloy 2205 F51 Flat BilletsAlloy 2205 Flat Bar22 Cr Duplex Steel Flat RodsAlloy 2205 F51 Flat Blooms
Grinded Machined 2205 Duplex Stainless Steel BilletsAlloy 2205 F51 Grinded Machined BarGrinded Machined Alloy 2205 F51 RodsGrinded Machined Saf 2205 Duplex Stainless Steel Blooms
Alloy 2205 Werkstoff 1.4462 Hexagonal BilletsAlloy 2205 F51 Hexagonal Bar22 Cr Duplex Steel Hexagonal RodsDuplex Stainless Steel Grade 2205 Hexagonal Blooms
Alloy 2205 F51 Flat Block BilletsAlloy 2205 Werkstoff 1.4462 Flat Block BarAlloy 2205 Flat Block Rods22 Cr Duplex Steel Flat Block Blooms
Alloy 2205 F51 Rectangular BilletsAlloy 2205 Werkstoff 1.4462 Rectangular Bar2205 Duplex Stainless Steel Rectangular RodsAlloy 2205 Werkstoff 1.4462 Rectangular Blooms
Alloy 2205 Werkstoff 1.4462 Hollow Ring BilletsDuplex Stainless Steel Grade 2205 Hollow Ring BarAlloy 2205 Werkstoff 1.4462 Hollow Ring Rods2205 Duplex Stainless Steel Hollow Ring Blooms
Duplex Stainless Steel Grade 2205 Hollow BilletsAlloy 2205 Werkstoff 1.4462 Hollow Bar22cr Duplex Stainless Steel Hollow RodsAlloy 2205 Werkstoff 1.4462 Hollow Blooms
Duplex Stainless Steel Grade 2205 Circular Billets22cr Duplex Stainless Steel Circular Bar2205 Duplex Stainless Steel Circular RodsDuplex Stainless Steel Grade 2205 Circular Blooms

Industrial Uses of ASTM A276 Type 2205 Round Bars

Learn the most common industrial applications of duplex 2205 round bar across diverse sectors, from petrochemicals to marine engineering.

  • Oil and gas industry
  • Desalination plants
  • Off-shore oil drilling companies
  • Mechanical components requiring high strength
  • Salt evaporation industry
  • Pulp and paper industry
  • Refineries and petrochemical plants
  • Seawater cooling
  • Manufacturing fasteners
  • Geothermal wells

Why Choose Duplex 2205 / S32205 Round Bars?

Duplex steel bars in grades 2205 and S32205 are preferred for challenging environments requiring high strength and corrosion protection. Choose Duplex 2205 / S32205 round bars because of the following properties:

  • Excellent weldability and can be easily formed or machined.
  • Exhibits strong resistance to cracking caused by chloride stress.
  • Offers reliable protection against overall corrosion.
  • Performs well against pitting and crevice corrosion from chloride exposure.
  • Displays notable resistance to corrosion from sulfide stress.
  • Provides superior mechanical strength.

Price of Duplex 2205 / UNS S32205 Round Bars in India

Below is an estimated price list for Duplex 2205 Round Bar in India. Please contact us for a free quote and the latest prices.

Product DescriptionPrice (INR) per TonPrice (USD) per Ton
Duplex Stainless Steel 2205 Round Bar (High Quality)₹123,000 - ₹205,000$1,500
Cold Drawn High Precision AISI Duplex 2205 Bright Bar₹65,600 - ₹82,000$800 - $1,000
Duplex 2205 Stainless Steel Round / Rod Bar₹48,400 - ₹55,760$590 - $680
Duplex 2205 Steel Ground Round Bar₹8,100 - ₹15,500$99 - $189
Cold Rolled/Drawn 2205 Duplex Stainless Steel Round Bar₹205 - ₹820 per kg$2.5 - $10 per kg
High-Quality Duplex Grade 2205 Stainless Steel Round Bar₹98,400 - ₹205,000$1,200 - $2,500
Duplex 2205 1.4410 Stainless Steel Round Bar₹205,000 - ₹984,000$2,500 - $12,000
Anti-Corrosion 2205 Duplex Stainless Steel Round Bar₹73,718 - ₹246,000$899 - $3,000

Note: Prices are indicative and can vary due to market fluctuations, quantity, and specifications. Additional charges such as taxes, shipping, and customs may apply.

Duplex Steel S31803 Round Bars, Duplex Steel S32205 Rods, ASTM A276 Duplex S31803 Square Bar Manufacturer, Duplex F51 Round Bars, Duplex UNS S32205 Hex Bar, 2205 Duplex Steel Bars, Duplex Stainless Steel Round Bar Supplier in India.

Duplex 2205 Flat Bars, Duplex Steel UNS S31803 Forged Bar, Duplex S32205 Round Bars, ASTM A479 Duplex Steel S32205 Rectangle Bar, Duplex Steel F60 Round Bars, Duplex S31803 Rod, Duplex Steel 2205 Bright Bar in Mumbai, India.

Exporting Duplex Steel S31803/S32205 Round Bars in Countries Like

Unifit Fastener manufactures, suppliers and exports of Duplex Steel S31803/S32205 Round Bars ​to various countries such as Chile, Kazakhstan, Italy, Australia, Argentina, Singapore, Jordan, Ghana, Czech Republic, Morocco, Mongolia, Iran, Poland, Tunisia, Bulgaria, Belgium, Croatia, Egypt, China, Turkey, Mexico, Jordan, Malaysia, Philippines, Hong Kong, Indonesia, Afghanistan, Angola, South Africa, New Zealand, Australia, Japan, Netherlands, Costa Rica, Israel, Ecuador, Bhutan, Spain, Russia, Venezuela, Romania, Austria, Portugal, United States, Saudi Arabia, Bangladesh, Colombia, Qatar, Kenya, Denmark, Lithuania, Sweden, Bahrain, Slovakia, Greece, Lebanon, South Korea, Chile, Vietnam, United Kingdom, Iraq, Canada, United Arab Emirates, Iran, Kuwait, Bolivia, Peru, Hungary, Trinidad & Tobago, Belarus, Pakistan, Sri Lanka, Kazakhstan, France, Nigeria, Poland, Oman, Norway, Libya, Nigeria, Gabon, Ukraine, Switzerland, Estonia, Brazil, Yemen, Mexico, Finland, Azerbaijan, Thailand, Algeria, Taiwan, Serbia.
